Vibratory Feeder

3P innovation's Vibratory Feeder is a versatile, compact powder filler designed to increase productivity, improve accuracy and enchance operator safety in lab and clinical manufacturing.


Applications:

  • GMP clinical and aseptic manufacturing
  • Drug formation and development
  • Device development
  • Drug dispensing and filling
  • Continuous and on-demand filling (e.g. blenders, millers, biovessels)

The module enables customers to dose and fill vials, capsules, syringes, cartridges and custom containers on the same machine, with increased precision.

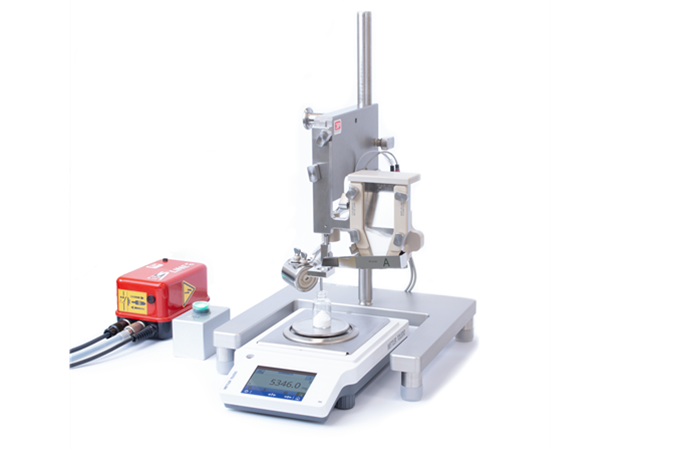

Vibratory Feeder
Vibratory Feeder
Vibratory Feeder
Vibratory Feeder
Vibratory Feeder

Key Benefits Include:

  • Gentle powder handling – no compaction
  • Precise, repeatable filling
  • Enhanced cleanliness – eliminates spills
  • Manual or automatic fill options
  • Adjustable flow rates

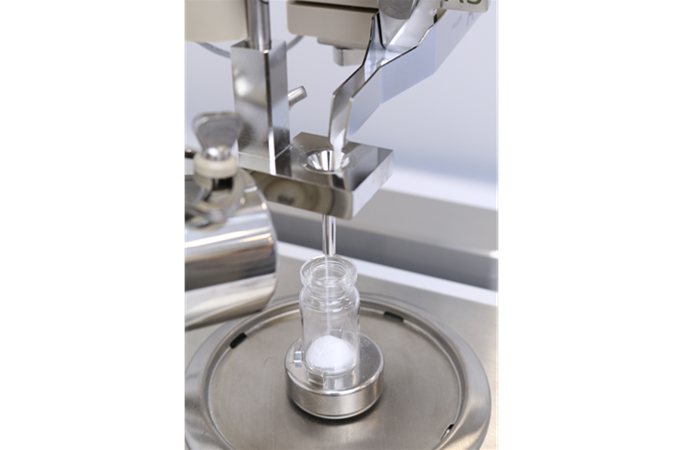

Flexible Fill Position: The Vibratory Feeder is fully adjustable, enabling dispensing at an optimum height to avoid segregation and to prevent particles from becoming airborne or contaminating container surfaces.

Scalable: The Vibratory Feeder provides a clinical filling methodology which can be scaled up later in a semi-automated or fully automated production machine. It can also be intergrated with 3P innovation's Fill2Weight gravimetric control system.

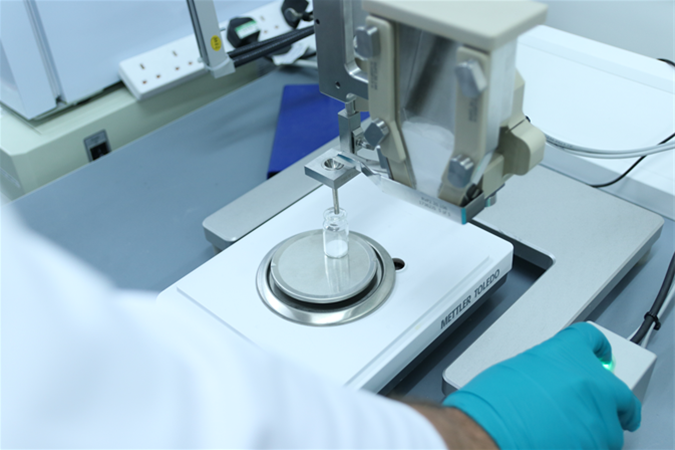

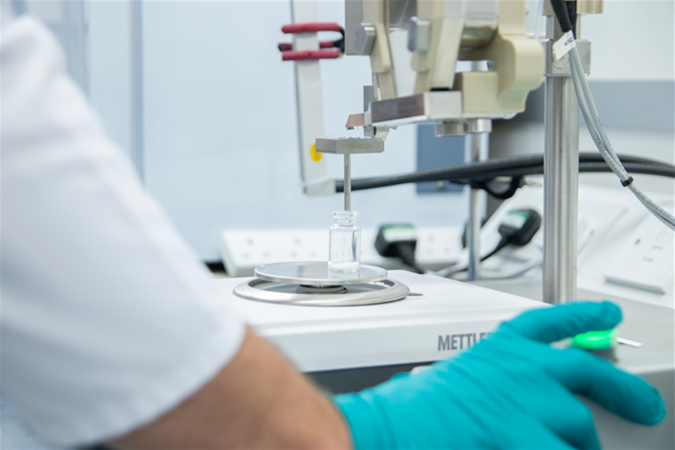

Spill Free: Eliminate the need for filling with spatulas, reducing the risk of spills. Simply press the filling button to precisely fill directly into your container.

Variable Flow Rate: The digital feeder control system allows the user to adjust and optimise vibration levels in order to control feed rate and suit the particular properties of the powder. The closed loop filling option automatically changes the feed rates to optimise speed and dose accuracy.

Ionisation: Highly static powders and/or containers can be managed using an optional ionisation system.

Customised Design Options: 3P innovation can provide custom tooling for container handling, system mounting and alternative

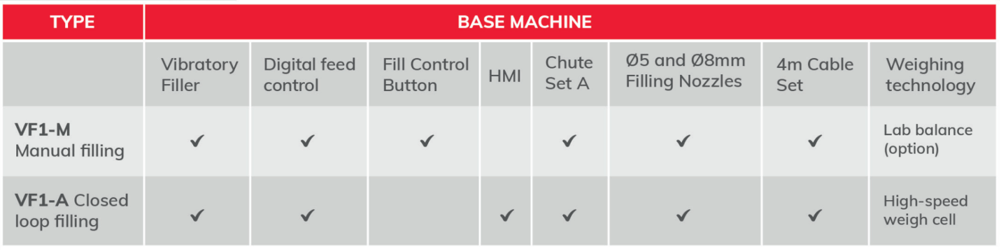

Confifure your own system:

Confifure your own system

Choose your container tooling: Examples include: (1) Capsules, (2) Vials, (3) Cartridges/syringes.

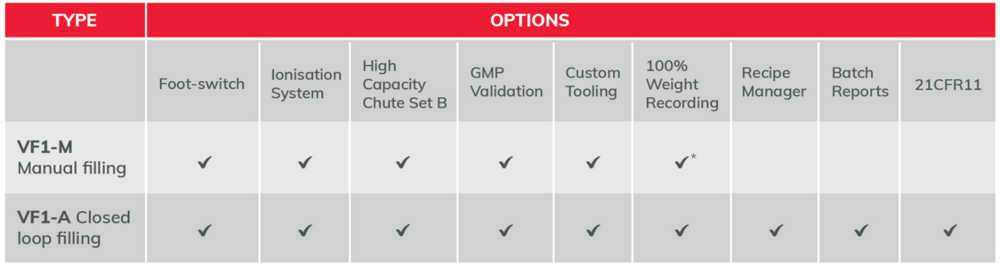

options



Technical Details

DOSE RANGE

5mg - 20g

DOSE ACCURACY

±1mg dependent upon flow rate, environment and weigh technology

FLOW RATES

Flow rates ~1mg/sec to ~400mg/sec (assumes a 0.5g/cc free-flowing powder)

SPEED (Typical)

25mg : 7.5 cpm

300mg : 5.0 cpm (assumes a 0.5g/cc free-flowing powder)

POWDER TYPES / CAPABILITY

Moderate to free-flowing powders*

NOZZLE RANGE

Dia 5 and Dia 8 supplied as standard

Extended length nozzles available for deep container filling

CONTAINER TYPES

Vials, capsules, syringes, cartridges, inhalers, blisters, devices, bulk bags and custom containers

POWER SUPPLY

Electrical: 100-230V AC 50/60Hz 1A

*Contact us to arrange a filling trial
