Pharma Equipment

Liquid Fill-Finish Platform

Liquid Fill-Finish Platform

Ultimate Flexibility in Aseptic Fill-Finish

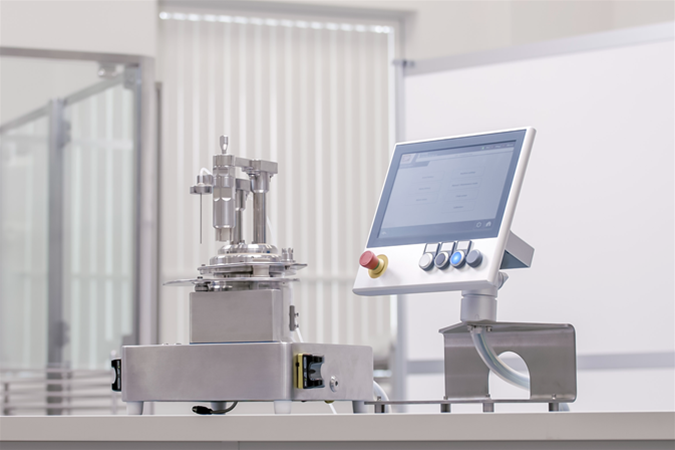

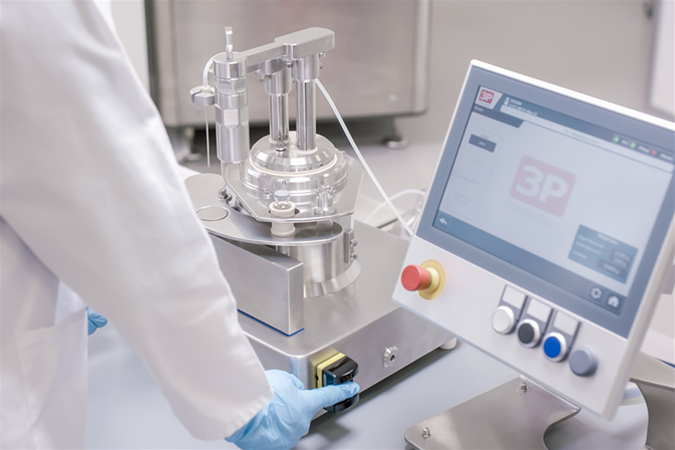

Our ultra compact Liquid Fill-Finish Platform is designed to be used in research and small scale manufacturing settings.The technology is ideally sized to be used in existing isolators, RABS and bio-safety cabinets and provides 100% fill weight verification together with full 21CFR Part11 compliance via the in-built recipe manager.

Key Benefits Include:

  • Fill up to 360 containers/hour
  • Ultra-flexible filling and stoppering on one machine of vials, cartridges and syringes

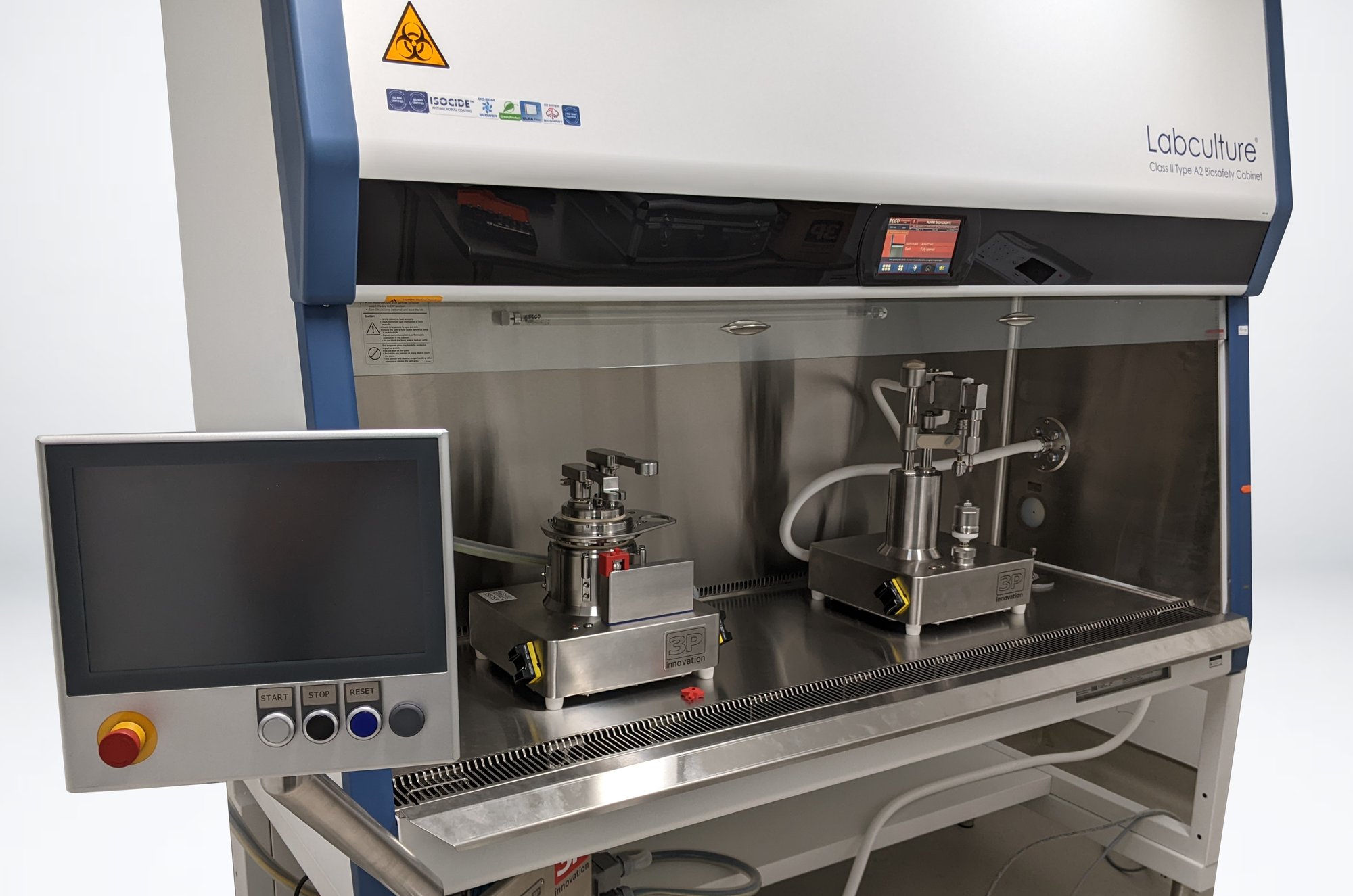

  • Existing isolators and bio-safety cabinets
  • Integrates high-speed check-weighing for 100% weight verification

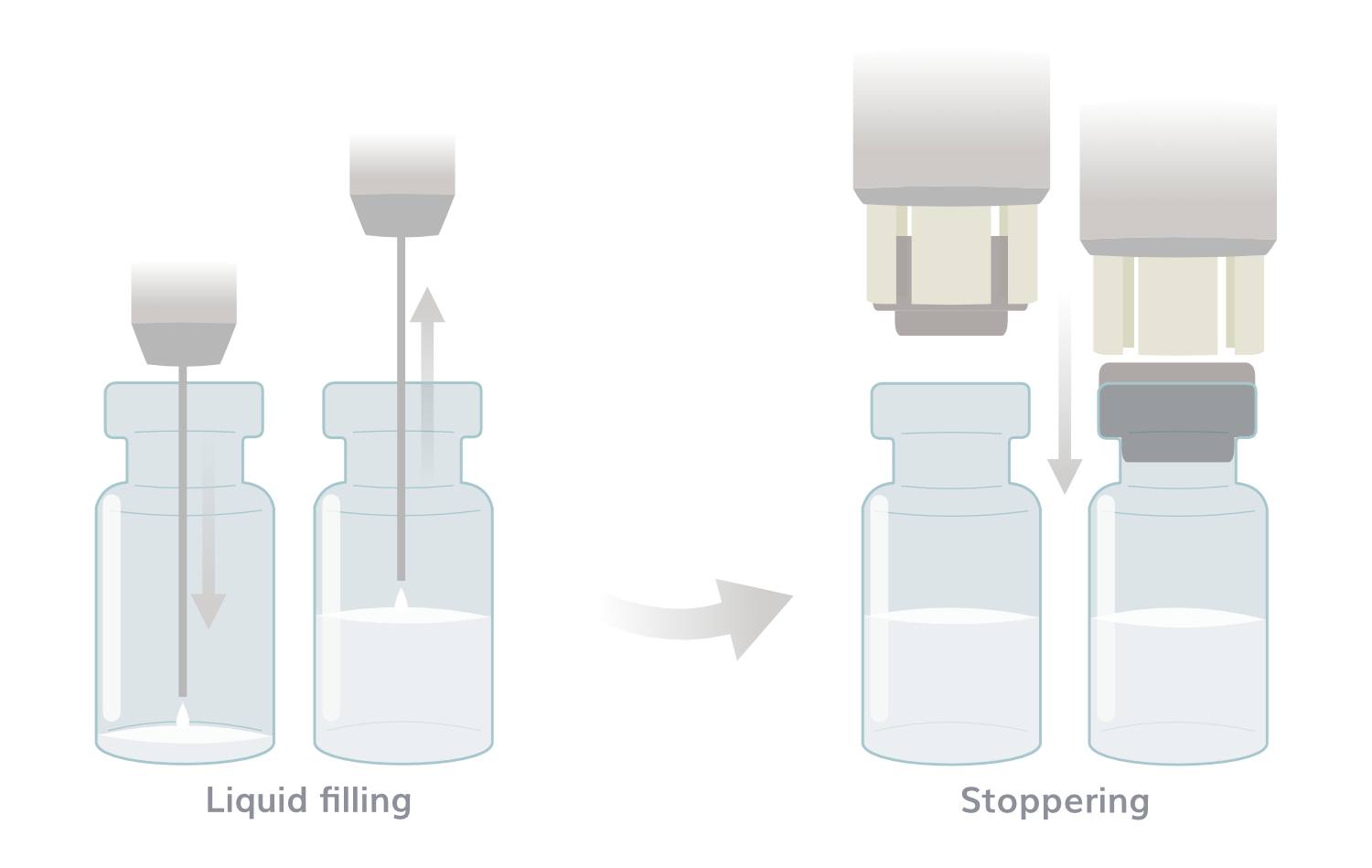

  • Liquid fill, nitrogen flush and stopper on the same machine
  • Easy set-up and calibration of pumps
  • Aseptic design and cGMP compliant
  • Ideal for custom applications

Scalable

The liquid fill-finish unit forms part of our core technology - the Discover range - and with the addition of automation, is adopted throughout the larger Explore and Evolve ranges for higher throughput fill-finish operations.

Liquid Fill-finish Platform core technology is the same technology used in our automated fill-finish production lines.

Configure Your Own System – Fast Changeover

The following table illustrates the processes available for various container types:

The Discover Ecosystem

This Liquid Fill-finish Platform is also part of 3P pharma equipment's Discover Ecosystem, which includes our Rotary Crimper and Fill2Weight Gravimetric Filler. All our technologies intergrate with one another and can share the same HMI. The use of our sterile fill-finish ecosystem accentuates the benefits of integrated quality and control systems.

  • An integrated end-to-end fill-finish and crimping system for liquids and powders
  • Quick and easy set up via a single HMI
  • Centralised data storage – single batch report

Technical Details

Get in touch with us today here or by calling us on 01926 408933.



Back to Discover Range

F2V-B-0 Liquid Filling System

F2V-W-0 Liquid Filling System with integrated weigh cell

F2V-W-1-S  Liquid Filling and Stoppering System with integrated weigh cell

F2V-W-N-S Liquid Filling with Stoppering System, Integrated weigh cell and Carousel?

                                                                  TECHNICAL DETAILS



F2V-B-0 Liquid Filling System

F2V-W-0 Liquid Filling System with integrated weigh cell

Function

Container Filling with Bottom up filling capability

Container Filling with Bottom up filling capability and integrated weigh cell

Output

Loading is operator dependent

– typically 8 to 12/min

Loading is operator dependent

– typically 8 to 12/min

Container Types



Container Range

ø6.85mm to ø30mm

Height: 35mm to 160mm

ø6.85mm to ø30mm

Height: 35mm to 160mm

Standard

Aseptic and cleanroom

VHP compatible

Aseptic and cleanroom

VHP compatible

Process Control

Servo motor drives

Needle Stroke 75mm

Servo motor drives

Needle Stroke 75mm

100% weight checking

Validation

Validation Package

21cfr11

Recipe and Batch Management

Access control and Password Management

Validation Package

21cfr11

Recipe and Batch Management

Access control and Password Management

User Interface

Touch Screen Control panel

Parameter and Recipe control

Touch Screen Control panel

Parameter and Recipe control

Options

Recipe Management

Machine Guard or Light Curtain

100% weight checking - Weigh cell

Recipe Management

Machine Guard or Light Curtain

Pump Options

Peristaltic

Rotary Piston

Time Pressure

Peristaltic

Rotary Piston

Time Pressure

Approx Dimensions

H 450mm x  W 300mm x D 320mm

H 450mm x  W 300mm x D 320mm

                                                                  TECHNICAL DETAILS



F2V-W-1-S Liquid Filling and Stoppering System with integrated weigh cell

F2V-W-N-S Liquid Filling System with Stoppering System, integrated weigh cell and carousel

Function

Container Filling with Bottom up filling capability and Vacuum stoppering with integrated weigh cell

Container Filling with Bottom up filling capability, vacuum stoppering and carousel

Output

Loading is operator dependent

– typically 8 to 12/min

Loading is operator dependent

– typically 10 to 12/min

Container Types



Container Range

ø6.85mm to ø30mm

Height: 35mm to 160mm

ø6.85mm to ø30mm

Height: 35mm to 160mm

Standard

Aseptic and cleanroom

VHP compatible

Aseptic and cleanroom

VHP compatible

Process Control

Servo motor drives

Needle Stroke 75mm

100% weight checking

Servo motor drives

Needle Stroke 75mm

100% weight checking

Validation

Validation Package

21cfr11

Recipe and Batch Management

Access control and Password Management

Validation Package

21cfr11

Recipe and Batch Management

Access control and Password Management

User Interface

Touch Screen Control panel

Parameter and Recipe control

Touch Screen Control panel

Parameter and Recipe control

Options

Recipe Management

Machine Guard or Light Curtain

Tube stoppering

Recipe Management

Machine Guard or Light Curtain

Tube stoppering

Pump Options

Peristaltic

Rotary Piston

Time Pressure

Peristaltic

Rotary Piston

Time Pressure

Approx Dimensions

H 450mm x  W 350mm x D 320mm

H 630mm x  W 350mm x D 320mm

The F2V liquid fill-finish range is designed to fill a wide variety of containers, including:

  • Vials
  • Syringes
  • Cartidges
  • Disgnostics/blisters
  • Custom containers
